Waveguide Rotary Joints


Rotary Joint Designs

  • 1.70 - 18.00 GHz Performance Frequency
  • 1.20 Typical Max VSWR (VSWR varies with design)
  • Multiple single channel designs available
  • Numerous Flange Configurations available
  • Aluminum (6061) or Copper WR Waveguide Available
  • Contact our Sales Staff for Design options



All AMC components are produced with the highest quality available. We insure our quality through a ISO9001 / AS9100 certified quality system.



WAVEGUIDE FLANGES:

A = AMC QUICK DISCONNECT (MALE) PATENT PROTECTED
B = AMC QUICK DISCONNECT (FEMALE) PATENT PROTECTED
C = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL CLEAR HOLES)
D = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL TAP HOLES)
= CPR STYLE FLAT (ALL TAP HOLES)
F = CPR STYLE FLAT (CLEAR HOLES)
G = CPR STYLE CONTACT GROOVED (CLEAR HOLES)
H = CPR STYLE CONTACT GROOVED (ALL TAP HOLES)
I = CMR (CLEAR HOLES)
J = CMR (ALT/ TAP,/CLEAR HOLES)
K = CMR (ALL TAP HOLES)
L = UG COVER (CLEAR HOLES)
M = UG COVER (ALL TAP HOLES)
N = UG COVER GROOVED (ALL CLEAR HOLES)
O = UG CHOKE (CLEAR HOLES)
P = UG CHOKE (ALL TAP HOLES)
Q = UG COVER GROOVED (ALL TAP HOLES)
R = UBR
S = PBR
T = CBR
U = UDR
V = PDR
W = CDR
X = SPECIAL FLANGES (CUSTOMER TO SPECIFY)


MODEL NUMBERS:
1 = U-SHAPE / RJ-U

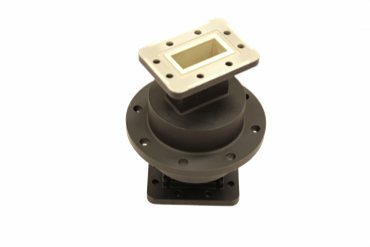

2 = INLINE   / RJ-IL

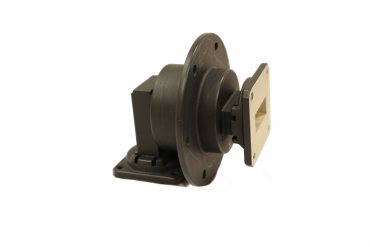

3 = L-SHAPE / RJ-L

W/G

 SIZE

FREQUENCY

 GHZ

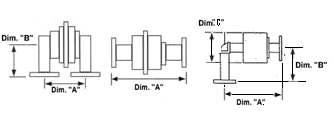

MODEL

DIM.

 "A"

DIM.

 "B"

62**

12.8 -15.86

1

3.60

1.00

62**

12.8 -15.86

2

3.50

N/A

75

13.75 -14.5

1

1.57

2.25

75

13.75 -14.5

2

3.50

N/A

75

13.75 -14.5

3

3.60

1.50

90*

8.20 -12.4

2

4.00

N/A

90*

8.20 -12.4

3

2.31

1.37

112*

7.90 -9.75

2

4.00

N/A

137

5.80-6.80

1

3.25

3.00

137

5.80-6.80

2

5.00

N/A

137

5.80-6.80

3

5.10

3.00

187

5.3 -5.7

1

9.75

4.00

187

5.3 -5.7

2

6.69

N/A

284

2.7 -3.1

2

9.90

N/A

430

2.025 -2.120

1

17.50

5.00

430

2.025 -2.120

2

12.00

N/A

430

2.025 -2.120

3

15.00

5.00



* =  Indicate your 25% of Bandwidth









** = Indicates 1Ghz of bandwidth







SAMPLE P/N: AMC-RJ-IL-75-P/P-B

MODEL N0:
RJ-U ="U" SHAPE
RJ-IL =INLINE
RJ-L = "L" SHAPE

W/G
SIZE


FLANGE
A & B


MATERIAL
A=Aluminum
B=Brass

AMC-RJ-IL  75 P/P B


The above referenced part number describes the following: WR75 "In-Line" style rotary joint , with choke flanges at both ends, made of brass.

Note: All AMC models include an iridite/corrosion protection treatment. Flanges are unplated, polished and iridited. Other finishes and paint colors are available upon request. Certain models are limited to material availabilty
