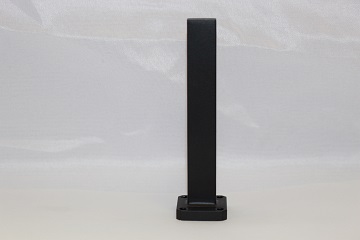

Low VSWR Load

Low VSWR Load

Low VSWR Load Description

  • 1.70 - 40.00 GHz Performance Frequency
  • 1.02 Typical VSWR (VSWR will vary with design)
  • Low power, calibration termination
  • Numerous Flange Configurations available
  • Aluminum (6061) or Copper Waveguide Available

AMC offers a Low VSWR / LOW Power Termination that is precision machined, linear tapered insert that is constructed of high power ceramic.    AMC also offers special unit design upon customer request.

All AMC components are produced with the highest quality available. We insure our quality through a ISO9001 / AS9100 certified quality system.

All AMC Low Power Terminations come standard with flat black paint.
WAVEGUIDE FLANGES:
A = AMC QUICK DISCONNECT (MALE) PATENT PROTECTED
B = AMC QUICK DISCONNECT (FEMALE) PATENT PROTECTED
C = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL CLEAR HOLES)
D = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL TAP HOLES)
= CPR STYLE FLAT (ALL TAP HOLES)
F = CPR STYLE FLAT (CLEAR HOLES)
G = CPR STYLE CONTACT GROOVED (CLEAR HOLES)
H = CPR STYLE CONTACT GROOVED (ALL TAP HOLES)
I = CMR (CLEAR HOLES)
J = CMR (ALT/ TAP,/CLEAR HOLES)
K = CMR (ALL TAP HOLES)
L = UG COVER (CLEAR HOLES)
M = UG COVER (ALL TAP HOLES)
N = UG COVER GROOVED (ALL CLEAR HOLES)
O = UG CHOKE (CLEAR HOLES)
P = UG CHOKE (ALL TAP HOLES)
Q = UG COVER GROOVED (ALL TAP HOLES)
R = UBR
S = PBR
T = CBR
U = UDR
V = PDR
W = CDR
X = SPECIAL FLANGES (CUSTOMER TO SPECIFY)


WR

SIZE

FREQUENCY

GHZ

LENGTH

MAX.

MAX.

VSWR

POWER

WATTS

(CW)

28

26.5 - 40.0

2.5

1.02

.25

34

22.0 – 33.0

2.5

1.02

.50

42

18.0 - 26.5

3

1.02

.50

51

15.0 - 22.0

3

1.02

1.0

62

12.4 - 18.0

4

1.02

1.5

75

10.0 - 15.0

4.5

1.02

2

90

8.20 - 12.4

5.5

1.02

3

112

7.05 - 10.0

5.5

1.02

4

137

5.85 - 8.20

5.5

1.02

6

159

4.90 - 7.05

6

1.02

7

187

3.95 - 5.85

6.5

1.02

8

229

3.30 - 4.90

7.5

1.02

10

284

2.60 - 3.95

10.5

1.02

10

430

1.70-2.60

14

1.02

15



SAMPLE P/N: AMC-LPLVT-75-N-A

MODEL
N0:
W/G
SIZE
FLANGE
TYPE
MATERIAL
A=Alum.
B =Brass
AMC-LPLVT
75
N
A

The above referenced part number describes the following: WR75 Low Power, Low VSWR Termination, with a cover groove flange, made of aluminum.

Note: All AMC models include an iridite/corrosion protection treatment and are painted flat black. Flanges are unplated, polished and iridited. Other finishes, please specify.
