Low Power Load Description

  • 1.70 - 40.0 GHz Performance Frequency
  • 1.25 Typical Max VSWR (VSWR varies with design)
  • Power ratings can vary with design
  • Multiple Design lengths available
  • Numerous Flange Configurations available
  • Aluminum (6061) or Copper Waveguide Available
  • Contact sales staff for available options

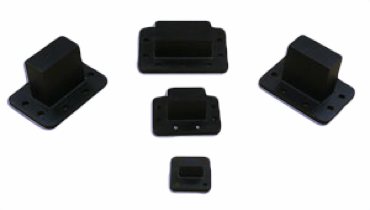

AMC offers a Low Power Termination that utilize poly iron precision machined elements. AMC also offers special unit design upon customer request.

All AMC components are produced with the highest quality available. We insure our quality through a ISO9001 / AS9100 certified quality system.

All AMC Low Power Terminations come standard with flat black paint.

WAVEGUIDE FLANGES:

A = AMC QUICK DISCONNECT (MALE) PATENT PROTECTED
B = AMC QUICK DISCONNECT (FEMALE) PATENT PROTECTED
C = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL CLEAR HOLES)
D = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL TAP HOLES)
= CPR STYLE FLAT (ALL TAP HOLES)
F = CPR STYLE FLAT  (CLEAR HOLES)
G = CPR STYLE CONTACT GROOVED (CLEAR HOLES)
H = CPR STYLE CONTACT GROOVED (ALL TAP HOLES)
I = CMR (CLEAR HOLES)
J = CMR (ALT/ TAP,/CLEAR HOLES)
K = CMR (ALL TAP HOLES)
L = UG COVER (CLEAR HOLES)
M = UG COVER (ALL TAP HOLES)
N = UG COVER GROOVED (ALL CLEAR HOLES)
O = UG CHOKE (CLEAR HOLES)
P = UG CHOKE (ALL TAP HOLES)
Q = UG COVER GROOVED (ALL TAP HOLES)
R = UBR
S = PBR
T = CBR
U = UDR
V = PDR
W = CDR
X = SPECIAL FLANGES (CUSTOMER TO SPECIFY)
 WR SIZE
FREQUENCY GHZ
LENGTH
WATTS (CW)
28
26.5 - 40.0
3.5
20
34
22.0 - 33.0
3.5
20
42
18.0 - 26.5
2.5
20
62
12.4 - 18.0
1.25
20
75
10.0 - 15.0
1.25
25
90
8.20 - 12.4
1.25
35
112
7.05 - 10.0
1.25
45
137
5.85 - 8.20
1.25
50
159
4.90 - 7.05
1.5
80
187
3.95 - 5.85
2.5
90
229
3.30 - 4.90
2.5
100
284
2.60 - 3.95
3.0
125
430
1.70 - 2.60
8.0
175

SAMPLE P/N: AMC-LPT75-N-B

MODEL

 NO:


WAVEGUIDE


FLANGE

TYPE

POWER

CW

MATERIAL

A= Aluminum

B= Brass

AMC-LPT

75

-N-

25

B



The above referenced part number describes the following: WR75, 25 Watts Low Power Termination. The flange is a UG cover style with a groove, made of brass.

Note: All AMC models include an iridite/corrosion protection treatment and are painted high-temperature flat black. Flanges are unplated, polished and iridited. Other finishes and paint colors are available upon request.
