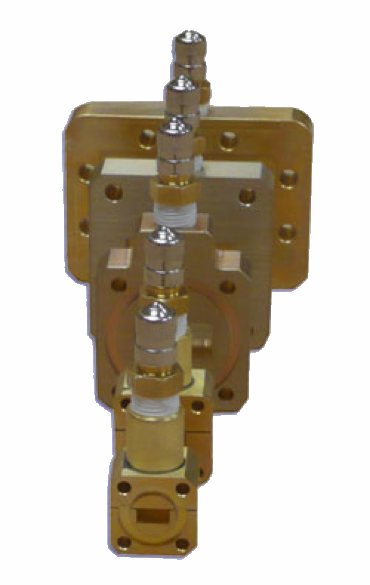

Waveguide Pressure Inlet


Waveguide Pressure Inlet Description

  • 1.70 - 40.00 GHz
  • VSWR less than 1.05
  • 1/8 Npt & 1/4 Npt  pressure ports available
  • Numerous Flange Configurations available
  • Aluminum (6061) or Brass  material available


Advanced Microwave Components offers a full product line of pressure inlets. All models are .500 thick for 1/8" Npt or .750" thick for 1/4" Npt unless other dimensions are requested.

All AMC components are produced with the highest quality available. We insure our quality through a ISO9001 / AS9100 certified quality system.

All AMC Pressure Inlets are painted flat black, but we offer additional upgrades on paint.

WAVEGUIDE FLANGES

A = AMC QUICK DISCONNECT (MALE) PATENT PROTECTED
B = AMC QUICK DISCONNECT (FEMALE) PATENT PROTECTED
C = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (CLEAR HOLES )
D = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL TAP HOLES)
= CPR STYLE FLAT (ALL TAP HOLES)
F = CPR STYLE FLAT (CLEAR HOLES)
G = CPR STYLE CONTACT GROOVED (CLEAR HOLES)
H = CPR STYLE CONTACT GROOVED (ALL TAP HOLES)
I = CMR (CLEAR HOLES)
J = CMR (ALT/ TAP,/CLEAR HOLES)
K = CMR (ALL TAP HOLES)
L = UG COVER (CLEAR HOLES)
M = UG COVER (ALL TAP HOLES)
N = UG COVER GROOVED (ALL CLEAR HOLES)
O = UG CHOKE (CLEAR HOLES)
P = UG CHOKE (ALL TAP HOLES)
Q = UG COVER GROOVED (ALL TAP HOLES)
R = UBR
S = PBR
T = CBR
U = UDR
V = PDR
W = CDR
X = SPECIAL FLANGES (CUSTOMER TO SPECIFY)
WR SIZEFREQ: GHZ
28 26.5 - 40.0
42 18.0 - 26.5
51 15.0.-.22.0
62 12.4 - 18.0
75 10.0 - 15.0
90 8.20 - 12.4
112 7.05 - 10.0
113 5.85 - 8.20
159 4.90 - 7.05
187 3.95 - 5.85
229 3.30 - 4.90
284 2.60 - 3.95
430 1.70 - 2.60

SAMPLE P/N: AMC-PI-A-75-L/L-.5-B

MODEL
N0:

Npt.
A=1/8"
B=1/4"
W/G
SIZE
FLANGE
TYPE
DIM.

MATERIAL
A=Alum.
B=Brass

AMC-PI A 75 -L/L- .5 B


The above part number describes the following item: WR75 Pressure Inlet- with 1/8" pipe connection, cover flanges on both sides, .500" thick, made of brass.

Note: All AMC-PI models are made of brass or aluminum and include an iridite/corrosion protection treatment and are painted flat black.  For other plating finishes, material or paint color requirements, please specify.
