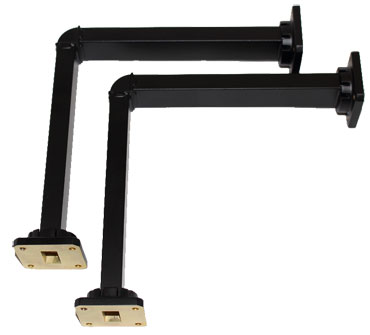

Waveguide Mitered Bends

Waveguide Mitered Bends Description

  • 1.70 - 40.00 GHz
  • Precision Tuned Cast Miters (Bronze or Aluminum Cast)
  • Standard Material Copper or Aluminum (6061) Waveguide
  • All Bends are Custom Built to Customer Specifications

AMC manufacturing philosophy is simply to offer quality waveguide in a flash.

Our waveguide department has built its great reputation on same day delivery throughout the years, so if you need it fast and you need it right call AMC for your custom waveguide components.

We insure our quality with an ISO 9001 / AS9100 certified quality system. All AMC components are painted flat black, but we offer additional upgrades on paint.

WAVEGUIDE FLANGES:

A = AMC QUICK DISCONNECT (MALE) PATENT PROTECTED
B = AMC QUICK DISCONNECT (FEMALE) PATENT PROTECTED
C = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (CLEAR HOLES)
D = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL TAP HOLES)
E = CPR STYLE FLAT (ALL TAP HOLES)
F = CPR STYLE FLAT (CLEAR HOLES)
G = CPR STYLE CONTACT GROOVED (CLEAR HOLES)
H = CPR STYLE CONTACT GROOVED (ALL TAP HOLES)
I = CMR (CLEAR HOLES)
J = CMR (ALT/ TAP,/CLEAR HOLES)
K = CMR (ALL TAP HOLES)
L = UG COVER (CLEAR HOLES)
M = UG COVER (ALL TAP HOLES)
N = UG COVER GROOVED (ALL CLEAR HOLES)
O = UG CHOKE (CLEAR HOLES)
P = UG CHOKE (ALL TAP HOLES)
Q = UG COVER GROOVED (ALL TAP HOLES)
R = UBR
S = PBR
T = CBR
U = UDR
V = PDR
W = CDR
X = SPECIAL FLANGES (CUSTOMER TO SPECIFY)
WR
SIZE
FREQ (GHZ)MIN. DIM.

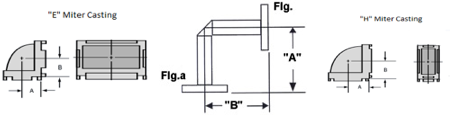

"E-BEND"
MIN. DIM
"H-BEND"
28 26.5 - 40.0 0.75 1
42 19.0 - 26.5 0.75 1
51 15.0 - 22.0 0.75 1
62 12.4 - 18.0 0.75 1
75 10.0 - 15.0 0.75 1
90 8.20 - 12.4 1 1.25
102 7.00 - 11.0 1 1.25
112 7.05 - 10.0 1 1.25
137 5.85 - 8.20 1 1.25
159 4.90 - 7.05 1.25 1.5
187 3.95 - 5.85 1.25 1.75
229 3.30 - 4.90 1.25 1.75
284 2.60 - 3.95 2 2.5
430 1.70 - 2.60 3 4
SAMPLE P/N: AMC-EM137-G/G-2.25X2.25-B
MODEL
No.
EM or HM
WAVEGUIDE
Size
FLANGE
TYPE
LEG DIM A+B

MATERIAL
A=Aluminum
B=Brass

AMC-EM 137 -G/G- -2.25x2.25- B

The above referenced part number describes the following item WR137"E" mitered bend, with CPRG flanges, legs 2.25" each, made of brass All bends are 90 degree, other degrees available upon request.

Note:All AMC models include an iridite/corrosion protection treatment and are painted fat black, flanges are unplated, iridited and polished. For other flange finishes, material or paint color requirements, please specify.
