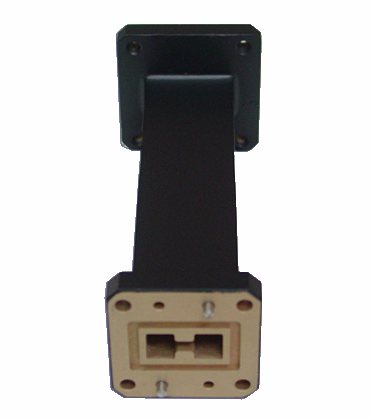

Double Ridge Straight Sections


Double Ridge Straight Sections Description

  • 3.5 - 40.0 GHz
  • 1.10 Typical Max VSWR (VSWR varies with design)
  • Numerous Flange Configurations available
  • Aluminum (6061) Waveguide Available
  • Corrosion protection with a flat black finish

Advanced Microwave Components is proud to offer quality waveguide in a flash! Our waveguide sections are manufactured to our customer's specifications and can be ready to ship on the same day.

All AMC components are produced with the highest quality available. We insure our quality through a ISO9001 / AS9100 certified quality system.

All parts are painted flat black and flanges are polished, unplated and iridited.

FLANGE TYPES

C = COVER STYLE
G = GASKET STYLE

MOUNTING HOLES

- 1 =ALT. TAP & CLEAR
- 2 =ALL TAPPED
- 3 = ALL CLEAR

WR SIZE
FREQ: GHZ
180
18.0 - 40.0
110
11.0 - 26.5
750
7.50 – 18.0
650
6.5 - 18.0
580
5.80 – 16.0
475
4.75 - 11.0
350
3.50 – 8.20

SAMPLE P/N: AMC-DRSS580-C3/C3-24-A

MODEL
N0:
W/G
SIZE
FLANGE
TYPE
LENGTH

MATERIAL
A=Aluminum

AMC-DRSS 580 -C3/C3- 24 A


The above referenced part number describes the following item: WRD580 straight section assembly, both flanges are cover flanges with clear holes, made of aluminum material. The overall length is 24 inches from flange face to flange face.

Note: All AMC models include an iridite/All AMC models include an iridite/corrosion protection treatment and are painted flat black. Flanges are unplated, polished and iridited. Other finishes and paint colors are available upon request.
