Flexible Only Seamless Waveguides

Flexible Only Seamless Waveguides

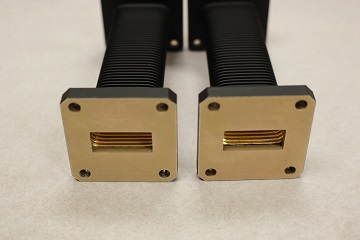

Advanced Microwave Components offers an array of flexible waveguide. The waveguide sizes range from WR-28 to as large as WR-430. The standard construction for all models of flex is seamless corrugated flex.

AMC also offers special unit design upon customer request. All AMC components are produced with the highest quality available. We insure our quality  through a ISO9001 / AS9100 certified quality system.

Flexible Only Seamless Waveguide Description

  • 1.70 - 40.00 GHz Performance Frequencies
  • Seamless Corrugated Brass
  • High Power Application
  • Numerous Flange Configurations available
  • Flange material can be Brass or Aluminum (6061)
  • Standard Finish is Flat Black Paint on Seamless Flex
  • Additional Finish available upon request
All AMC flexible waveguide is non-jacketed unless otherwise specified. AMC offers numerous types of jackets as a special order and we offer additional upgrades on painting.

WAVEGUIDE FLANGES:

A = AMC QUICK DISCONNECT (MALE) PATENT PROTECTED
B = AMC QUICK DISCONNECT (FEMALE) PATENT PROTECTED
C = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL CLEAR HOLES)
D = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL TAP HOLES)
= CPR STYLE FLAT (ALL TAP HOLES)
F = CPR STYLE FLAT (CLEAR HOLES)
G = CPR STYLE CONTACT GROOVED (CLEAR HOLES)
H = CPR STYLE CONTACT GROOVED (ALL TAP HOLES)
I = CMR (CLEAR HOLES)
J = CMR (ALT/ TAP,/CLEAR HOLES)
K = CMR (ALL TAP HOLES)
L = UG COVER (CLEAR HOLES)
M = UG COVER (ALL TAP HOLES)
N = UG COVER GROOVED (ALL CLEAR HOLES)
O = UG CHOKE (CLEAR HOLES)
P = UG CHOKE (ALL TAP HOLES)
Q = UG COVER GROOVED (ALL TAP HOLES)
R = UBR
S = PBR
T = CBR
U = UDR
V = PDR
W = CDR
X = SPECIAL FLANGES (CUSTOMER TO SPECIFY)
EIA WR SIZE
FREQ:
RANGE
GHZ
POWER WATTS CW
POWER KW PEAK
28
26.5 - 40.0
75
20
34
22.0 – 33.0
200
30
42
18.0 - 26.5
300
39
62
12.4 - 18.0
1,000
100
75
10.0 - 15.0
1,500
140
90
8.20 - 12.4
3,000
180
102
7.00 - 11.0
4,000
300
112
7.05 -10.0
4,000
315
137
5.85 - 8.20
5,000
500
159
4.90 -7.05
6,000
1,100
187
3.95 - 5.85
6,500
1,250
229
3.30 - 4.90
8,000
1,550
284
2.60 - 3.95
10,000
2,000
430
1.70 - 2.60
20,000
4,700
JACKET MATERIAL
N = Neoprene
S = Silicone
JACKET FINISH
M = Molded
B = Brushed

SAMPLE P/N: AMC-FS-75-P/L-12-B

MODEL
N0.:
W/G
SIZE
FLANGE
TYPE
LENGTHFLANGE
MATERIAL
Brass
Aluminum
JACKET
Paint
N = Neoprene
S = Silicone
JACKET
M =molded
B = Brushed
AMC-FS 75 -P/L- -12- B N M

The above referenced part number describes the following: WR75 Seamless/Flex assembly, with a choke and cover flange, made of brass. Total length is 12" overall with a neoprene molded jacket.

Note: All AMC models include seamless flex, with standard non jacket, painted flat black, and flanges unplated, iridited and polished. Unless other wise stated; Other finishes and jacketing are available upon request.
