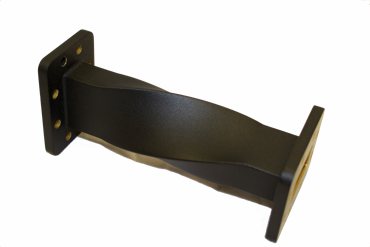

Waveguide Twists


Waveguide Twists Description

  • 1.70 - 40.00 GHz Performance Frequency
  • (VSWR varies with design)
  • Minimum length noted in chart & custom lengths available
  • Numerous Flange Configurations available
  • Aluminum (6061) or Copper Waveguide Available


All AMC components are produced with the highest quality available. We insure our quality through a ISO9001 / AS9100 certified quality system.

All parts are painted flat black and flanges are polished, unplated and iridited. Additional finish are available upon request.

WAVEGUIDE FLANGES:

A = AMC QUICK DISCONNECT (MALE) PATENT PROTECTED
B = AMC QUICK DISCONNECT (FEMALE) PATENT PROTECTED
C = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL CLEAR HOLES)
D = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL TAP HOLES)
= CPR STYLE FLAT (ALL TAP HOLES)
F = CPR STYLE FLAT (CLEAR HOLES)
G = CPR STYLE CONTACT GROOVED (CLEAR HOLES)
H = CPR STYLE CONTACT GROOVED (ALL TAP HOLES)
I = CMR (CLEAR HOLES)
J = CMR (ALT/ TAP,/CLEAR HOLES)
K = CMR (ALL TAP HOLES)
L = UG COVER (CLEAR HOLES)
M = UG COVER (ALL TAP HOLES)
N = UG COVER GROOVED (ALL CLEAR HOLES)
O = UG CHOKE (CLEAR HOLES)
P = UG CHOKE (ALL TAP HOLES)
Q = UG COVER GROOVED (ALL TAP HOLES)
R = UBR
S = PBR
T = CBR
U = UDR
V = PDR
W = CDR
X = SPECIAL FLANGES (CUSTOMER TO SPECIFY)

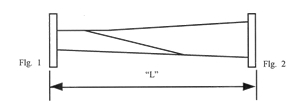

 WR SIZE.FREQUENCY  GHZMIN. LENGTH DIM."L"
28 26.5 - 40.0 2
34 18.0 - 26.5 2.25
51 15.0 - 22.0 2.25
62 12.4 - 18.0 2.5
75 10.0 - 15.0 3
90 8.20 - 12.4 3
102 7.00 - 11.0 3.5
112 7.05 - 10.0 3.5
137 5.85 - 8.20 4
159 4.90 - 7.05 5
187 3.95 - 5.85 6
229 3.30 - 4.90 7.5
284 2.60 - 3.95 8.5
430 1.70 - 2.60 16

SAMPLE P/N: AMC-TW-45Y-75-N/N-12-B

MODEL
N0:

ANGLE
TW=90
Specify Angle

DIRECTION
Y=Clockwise
Z=Counter-Clockwise

W/G
SIZE
FLANGE
TYPE
LENGTH

MATERIAL
A=Aluminum
B=Brass

AMC-TW 45 Y 75 N/N 12 B

The above referenced part number describes the following item: WR 75 45 degree CW, twist section, both flanges are cover groove flanges, made of brass material. The overall length is 12 inches from flange face to flange face.

Note: All AMC models include an iridite/corrosion protection treatment and are painted Flat black. Flanges are unplated, polished and iridited. AMC makes twists of all angles. Please specify your required degree if other than 90 degrees.
