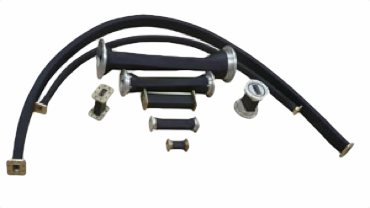

Flexible Twistable Waveguides

Flexible Twistable Waveguides
  • 1.7 - 40.00 GHz Performance Frequencies
  • Silver Plated Brass
  • Flange material in Brass or Aluminum
  • Numerous Flange Configurations available
  • Molded Neoprene Jacket
Advanced Microwave Components offers an array of flexible waveguide. The waveguide sizes range from WR-28 to as large as WR-430. The standard construction for all models of flex is silver plated brass. AMC also offers special unit design upon customer request.

All AMC components are produced with the highest quality available. We insure our quality through a  ISO9001 / AS9100 certified quality system. All AMC twistable, flexible waveguides are neoprene jacketed unless otherwise specified.

AMC offers other types of jackets upon request.

WAVEGUIDE FLANGES:

A = AMC QUICK DISCONNECT (MALE) PATENT PROTECTED
B = AMC QUICK DISCONNECT (FEMALE) PATENT PROTECTED
C = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL CLEAR HOLES)
D = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL TAP HOLES)
= CPR STYLE FLAT (ALL TAP HOLES)
F = CPR STYLE FLAT (CLEAR HOLES)
G = CPR STYLE CONTACT GROOVED (CLEAR HOLES)
H = CPR STYLE CONTACT GROOVED (ALL TAP HOLES)
I = CMR (CLEAR HOLES)
J = CMR (ALT/ TAP,/CLEAR HOLES)
K = CMR (ALL TAP HOLES)
L = UG COVER (CLEAR HOLES)
M = UG COVER (ALL TAP HOLES)
N = UG COVER GROOVED (ALL CLEAR HOLES)
O = UG CHOKE (CLEAR HOLES)
P = UG CHOKE (ALL TAP HOLES)
Q = UG COVER GROOVED (ALL TAP HOLES)
R = UBR
S = PBR
T = CBR
U = UDR
V = PDR
W = CDR
X = SPECIAL FLANGES (CUSTOMER TO SPECIFY)

 WR SIZE

GHZ

POWER WATTS CW

POWER KW PEAK

28

26.5 - 40.0

75

20

34

22.0 - 33.0

100

30

42

18.0 - 26.5

100

39

62

12.4 - 18.0

400

100

75

10.0 - 15.0

750

140

90

8.20 - 12.4

1,000

180

102

7.00 - 11.0

1,500

300

112

7.05 - 10.0

1,500

315

137

5.85 - 8.20

2,000

500

159

4.90 - 7.05

2,500

1,100

187

3.95 - 5.85

3,000

1,250

229

3.30 - 4.90

4,000

1,550

284

2.60 - 3.95

4,000

2,000

430

1.70 – 2.60

10,000

4,700


SAMPLE P/N: AMC-FLT75-P/L-36B

MODEL
N0:
W/G
SIZE
FLANGE
TYPE
A&B
LENGTH

MATERIAL
A=Alum.
B=Brass

AMC-FLT 75 -P/L- 36 B

The above referenced part number describes the following item: WR75 Twist/Flex assembly, with a choke and cover flange, made of brass. Length is 36".

Note: All AMC models include silver plated flex, with standard neoprene jacket and flanges unplated, iridited and polished. Other finishes and jacketing are available upon request.
