High Power Load

High Power Load

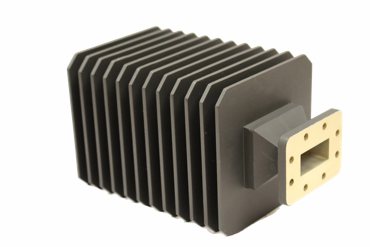

High Power Load Description

  • 1.70 - 40.00 GHz High Performance
  • 1.15 Typical VSWR
  • Forced Air required for cooling
  • Standard Material Aluminum (6061)
  • 100-4000 Watt Loads
  • Fin orientation varies per specifications
  • Contact Sales staff for alternative design options

AMC offers a High Power Termination that requires fins and external forced air cooling. The qnty and size of the fins are determinced by AMC design or per customer specificatiosn.

AMC also offers special unit design upon customer request. All AMC components are produced with the highest quality available. We insure our quality through a ISO9001 / AS9100 certified quality system. All AMC's High Power Terminations come standard with high heat flat black paint.


WAVEGUIDE FLANGES:

A = AMC QUICK DISCONNECT (MALE) PATENT PROTECTED
B = AMC QUICK DISCONNECT (FEMALE) PATENT PROTECTED
C = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL CLEAR HOLES)
D = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL TAP HOLES)
= CPR STYLE FLAT (ALL TAP HOLES)
F = CPR STYLE FLAT (CLEAR HOLES)
G = CPR STYLE CONTACT GROOVED (CLEAR HOLES)
H = CPR STYLE CONTACT GROOVED (ALL TAP HOLES)
I = CMR (CLEAR HOLES)
J = CMR (ALT/ TAP,/CLEAR HOLES)
K = CMR (ALL TAP HOLES)
L = UG COVER (CLEAR HOLES)
M = UG COVER (ALL TAP HOLES)
N = UG COVER GROOVED (ALL CLEAR HOLES)
O = UG CHOKE (CLEAR HOLES)
P = UG CHOKE (ALL TAP HOLES)
Q = UG COVER GROOVED (ALL TAP HOLES)
R = UBR
S = PBR
T = CBR
U = UDR
V = PDR
W = CDR
X = SPECIAL FLANGES (CUSTOMER TO SPECIFY)
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer adipiscing erat eget risus sollicitudin pellentesque et non erat. Maecenas nibh dolor, malesuada et bibendum a, sagittis accumsan ipsum. Pellentesque ultrices ultrices sapien, nec tincidunt nunc posuere ut. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nam scelerisque tristique dolor vitae tincidunt. Aenean quis massa uada mi elementum elementum. Nec sapien convallis vulputate rhoncus vel dui.

WAVEGUIDE

SIZE

FREQUENCY

GHZ

MAX.

DIM.

" L "

MAX.

DIM.

" A "

MAX.

DIM.

" B "

POWER

WATTS

(CW)

28

26.5-40.0

3.25

2.00

2.00

100

34

22.0 – 33.0

4

2.25

2.25

100

42

18.0 - 26.5

4

2.25

2.25

200

62

12.4 - 18.0

4.5

2.5

2.5

350

75

10.0 - 15.0

9.25

2.75

3

750

90

8.20 - 12.4

5.75

2.75

2.75

375

112

7.05 - 10.0

6.25

3.25

3.25

425

137

5.85 - 8.20

8.25

425

4.25

1000

137

5.85 - 8.20

13.1

4

3.5

3000

159

4.90 - 7.05

8.5

3.75

3.25

3000

187

3.95 - 5.85

9.5

4.25

3.75

3000

229

3.30 - 4.90

12

5.5

5

2000

284

2.60 - 3.95

13.5

6

5

3500

430

1.70 - 2.60

17

8.5

7

4000

SAMPLE P/N: AMC-HPT137-F-1000A

MODEL

NO:

WAVEGUIDE

SIZE

FLANGE

TYPE

CONSTANT
POWER
CW

MATERIAL

A= ALUMINUM

B= BRASS

AMC-HPT

       137

-F-

    1000

A



The above referenced part number describes the following item: WR137 1000 WATT High Power Termination, with a CPRF flange, made of Aluminum.

Note: All AMC models include an iridite/corrosion protection treatment and are painted high-temperature flat black. Flanges are unplated, polished and iridited. Other finishes are available upon request.
