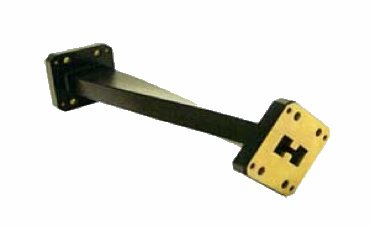

Double Ridge Twists


Double Ridge Twists Description

  • 3.5 - 40.00 GHz
  • 1.15 Typical Max VSWR (VSWR varies with design)
  • Numerous Flange Configurations available
  • Aluminum (6061) Waveguide Available

Advanced Microwave Components is proud to offer quality waveguide in a flash! Our waveguide sections are manufactured to our customer's specifications and can be ready to ship on the same day.

All AMC components are produced with the highest quality available. We insure our quality through a ISO9001 / AS9100 certified quality system.

All parts are painted flat black and flanges are polished, unplated and iridited.

FLANGE TYPES

C = COVER STYLE
G = GASKET STYLE

MOUNTING HOLES

- 1 =ALT. TAP & CLEAR
- 2 =ALL TAPPED
- 3 = ALL CLEAR


WR SIZE

FREQ: GHZ

MINIMUM LENGTH

180

18.0 - 40.0

4.0

110

11.0 - 26.5

4.0

750

7.50 – 18.0

5.0

650

6.5 - 18.0

5.0

580

5.80 – 16.0

5.0

475

4.75 - 11.0

7.0

350

3.50 – 8.20

9.0

SAMPLE P/N: AMC-DRTW580-C1/C1-10-A

MODEL
N0:

W/G
SIZE

FLANGE
TYPE

LENGTH

MATERIAL
A=Aluminum

AMC-DRTW

580

-C1/C1-

10

A


The above referenced part number describes the following item: WRD580 90 degree twist section assembly, both flanges are cover flanges with alt. tapped & clear holes, made of aluminum material. The overall length is 10 inches from flange face to flange face.

Note: All AMC models include an iridite/corrosion protection treatment and are painted flat black. Flanges are unplated, polished, and iridited. AMC makes twists of all angles. Please specify your required degree if other than 90.
