C = COVER STYLE |
G = GASKET STYLE |
– 1 =ALT. TAP & CLEAR |
– 2 =ALL TAPPED |
– 3 = ALL CLEAR |
|
3.5 – 40.0 GHz
1.15 Typical Max VSWR (VSWR varies with design)
Numerous Flange Configurations available
Aluminum (6061) Waveguide Available
Cooling Fin oreintation varies with design
Forced Air required for cooling

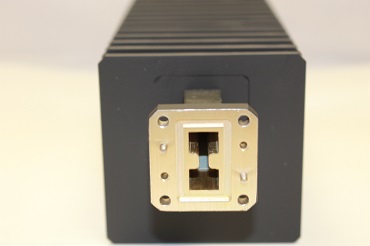

Advanced Microwave Components is proud to offer quality waveguide terminations in a flash! Our waveguide sections are manufactured to our customer’s specifications.
All AMC components are produced with the highest quality available. We insure our quality with an ISO9001 / AS9100 Quality System.
All parts are painted high heat flat black and flanges are polished, unplated and iridited.
WR SIZE | FREQ: GHZ | Ref. DIM. ” L “ | Ref. DIM. ” A “ | Ref. DIM. ” B “ | POWER (CW) |
180 | 18.0 – 40.0 | 8.00 | 3.14 | 2.5 | 100 |
110 | 11.0 – 26.5 | 8.00 | 3.25 | 2.5 | 250 |
750 | 7.50 – 18.0 | 11.00 | 4.25 | 3.85 | 500 |
650 | 6.5 – 18.0 | 11.00 | 4.25 | 3.85 | 500 |
580 | 5.80 – 16.0 | 9.00 | 3.00 | 3.00 | 650 |
475 | 4.75 – 11.0 | 13.00 | 4.50 | 4.0 | 650 |
350 | 3.50 – 8.20 | 13.00 | 4.50 | 4.0 | 750 |
MODEL | WAVEGUIDE | FLANGE | POWER | MATERIAL |
AMC-DRHPT | 580 | -C3- | 500 | A |
The above referenced part number describes the following item: WRD580, 500 WATT High Power Termination with a cover flange with clear holes made of aluminum.
Note: All AMC models include an iridite/corrosion protection treatment and are painted high-temperature flat black. Flanges are unplated, polished, and iridited. Other finishes and paint colors are available upon request.
