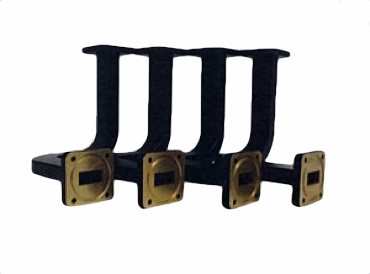

Advanced Microwave Components is proud to offer quality waveguide in a flash! Our waveguide sections are manufactured to our customer's specifications.

All AMC components are produced with the highest quality available. We insure our quality through a ISO9001 / AS9100 certified quality system.

All the parts are painted flat black and flanges are polished, unplated and iridited. We offer additional upgrades on paint.

WAVEGUIDE FLANGES:

A = AMC QUICK DISCONNECT (MALE) PATENT PROTECTED

B = AMC QUICK DISCONNECT (FEMALE) PATENT PROTECTED

C = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (CLEAR HOLES)

D = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL TAP HOLES)

E = CPR STYLE FLAT (ALL TAP HOLES)

F = CPR STYLE FLAT (CLEAR HOLES)

G = CPR STYLE CONTACT GROOVED (CLEAR HOLES)

H = CPR STYLE CONTACT GROOVED (ALL TAP HOLES)

I = CMR (CLEAR HOLES)

J = CMR (ALT/ TAP,/CLEAR HOLES)

K = CMR (ALL TAP HOLES)

L = UG COVER (CLEAR HOLES)

M = UG COVER (ALL TAP HOLES)

N = UG COVER GROOVED (ALL CLEAR HOLES)

O = UG CHOKE (CLEAR HOLES)

P = UG CHOKE (ALL TAP HOLES)

Q = UG COVER GROOVED (ALL TAP HOLES)

R = UBR

S = PBR

T = CBR

U = UDR

V = PDR

W = CDR

X = SPECIAL FLANGES (CUSTOMER TO SPECIFY)

WAVEGUIDE SIZE

WR SIZE	FREQ (GHZ)	MIN. DIM. "E-BEND"	MIN. DIM "H-BEND"
28	26.5 - 40.0	0.50	0.62
34	22.0 - 33.0	0.50	0.62
42	18.0 - 26.5	0.50	0.62
51	15.0 - 22.0	0.50	0.62
62	12.4 - 18.0	0.50	0.62
75	10.0 - 15.0	0.62	0.75
90	8.20 - 12.4	0.75	0.75
102	7.00 - 11.0	0.88	1.00
112	7.05 - 10.0	0.88	1.00
137	5.85 - 8.20	1.00	1.25
159	4.90 - 7.05	1.25	2.00
187	3.95 - 5.85	1.50	2.25
229	3.30 - 4.90	2.00	2.50
284	2.60 - 3.95	2.50	3.00
430	1.70 - 2.60	6.00	8.00

Note:: All AMC models include an iridite / corrosion protection Treatment and are painted flat black, flanges are unplated, Iridited and polished. For other flange finishes, materials or Paint color requirements, please specify.: All AMC models include an iridite/corrosion protection Treatment and are painted flat black, flanges are unplated, Iridited and polished. For other flange finishes, materials or Paint color requirements, please specify.

SAMPLE P/N: AMC-EB137-G/G-2.25x2.25B

MODEL NUMBER EB= E BEND HB= H BEND	WAVEGUIDE SIZE	FLANGE TYPE A+B	LEG DIMENSION A+B	MATERIAL A=Alum. B=Brass
AMC-EB	137	G/G	2.25x2.25	B

The above referenced part number describe the following item: WR 137 “E” formed bend, with CPRG flanges, legs = 2.25” Made of copper
