Medium Power Load
Medium Power Load Description
- 1.70 - 40.0 GHz Performance Frequency
- 1.25 Typical Max VSWR (VSWR Varies with design)
- Power ratings vary with design
- Numerous flange configurations available
- Aluminum (6061) or Copper WR Waveguide available
- Cooling fin requirements vary with design & power specifications
- Contact sales staff for any potential alternative design options

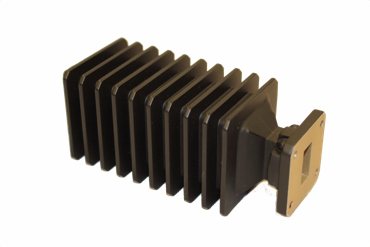

AMC offers a Medium Power Termination that has a Poly iron element that has been precision ground to required tolerances. AMC also offers special unit design upon customer request.
All AMC components are produced with the highest quality available. We insure our quality through a ISO9001 / AS9100 certified quality system.
All AMC Medium Power Terminations come standard with flat black paint.
All AMC components are produced with the highest quality available. We insure our quality through a ISO9001 / AS9100 certified quality system.
All AMC Medium Power Terminations come standard with flat black paint.
WAVEGUIDE FLANGES:
|
A = AMC QUICK DISCONNECT (MALE) PATENT PROTECTED
|
|
B = AMC QUICK DISCONNECT (FEMALE) PATENT PROTECTED
|
|
C = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL CLEAR HOLES)
|
|
D = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL TAP HOLES)
|
|
E = CPR STYLE FLAT (ALL TAP HOLES)
|
|
F = CPR STYLE FLAT (CLEAR HOLES)
|
|
G = CPR STYLE CONTACT GROOVED (CLEAR HOLES)
|
|
H = CPR STYLE CONTACT GROOVED (ALL TAP HOLES)
|
|
I = CMR (CLEAR HOLES)
|
|
J = CMR (ALT/ TAP,/CLEAR HOLES)
|
|
K = CMR (ALL TAP HOLES)
|
|
L = UG COVER (CLEAR HOLES)
|
|
M = UG COVER (ALL TAP HOLES)
|
|
N = UG COVER GROOVED (ALL CLEAR HOLES)
|
|
O = UG CHOKE (CLEAR HOLES)
|
|
P = UG CHOKE (ALL TAP HOLES)
|
|
Q = UG COVER GROOVED (ALL TAP HOLES)
|
|
R = UBR
|
|
S = PBR
|
|
T = CBR
|
|
U = UDR
|
|
V = PDR
|
|
W = CDR
|
|
X = SPECIAL FLANGES (CUSTOMER TO SPECIFY)
|
|
WR SIZE |
FREQ: GHZ |
LENGTH |
POWER (CW) |
|
28 |
26.5 - 40.0 |
3 |
30 |
|
34 |
22.0 - 33.0 |
3.0 |
30 |
|
42 |
18.0 - 26.5 |
3.5 |
50 |
|
51 |
15.0 - 22.0 |
3.5 |
50 |
|
62 |
12.4 - 18.0 |
3.5 |
75 |
|
75 |
10.0 - 15.0 |
4.5 |
250 |
|
90 |
8.20 - 12.4 |
5.5 |
200 |
|
112 |
7.05 - 10.0 |
7 |
250 |
|
137 |
5.85 - 8.20 |
7.5 |
300 |
|
159 |
4.90 - 7.05 |
8 |
300 |
|
187 |
3.95 - 5.85 |
8.5 |
500 |
|
229 |
3.30 - 4.90 |
10 |
600 |
|
284 |
2.60 - 3.95 |
12 |
700 |
|
430 |
1.70 - 2.60 |
14 |
800 |
SAMPLE P/N: AMC-MPT137-G-300A
|
MODEL NO: |
WAVEGUIDE SIZE |
FLANGE TYPE |
CONSTANT POWER |
MATERIAL A= ALUMINUM B= BRASS |
|
AMC-MPT |
137 |
-G- |
300 |
A |
The above referenced part number describes the following item: WR137 Medium Power Termination, with a CPRG flange, made of aluminum. This design handles 300 watts. Note: All AMC models include an iridite/corrosion protection treatment and are painted high-temperature flat black. Flanges are unplated, polished and iridited.
