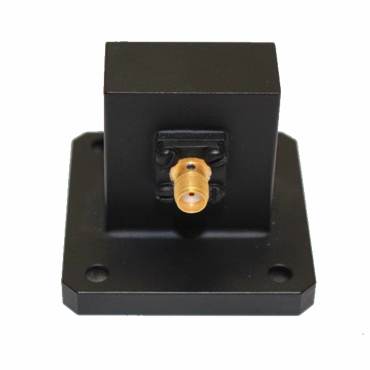

Waveguide to Coaxial SMA Adapters
Waveguide Adapter Description
- 1.70 - 40.00 GHz Performance Frequency
- 1.25 Typical Max VSWR (VSWR varies with design)
- Male or Female Connectors available
- Numerous Flange Configurations available
- Aluminum (6061) or Copper (OFHC) Waveguide Available
AMC offers special unit design upon customer request. All AMC components are produced with the highest quality available.
We insure our quality with an ISO9001 / AS9100 Quality System. All AMC Adapters are painted flat black, but we offer additional upgrades on paint.
WAVEGUIDE FLANGES:
|
A = AMC QUICK DISCONNECT (MALE) PATENT PROTECTED
|
|
B = AMC QUICK DISCONNECT (FEMALE) PATENT PROTECTED
|
|
C = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (CLEAR HOLES)
|
|
D = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL TAP HOLES)
|
|
E = CPR STYLE FLAT (ALL TAP HOLES)
|
|
F = CPR STYLE FLAT (CLEAR HOLES)
|
|
G = CPR STYLE CONTACT GROOVED(CLEAR HOLES)
|
|
H = CPR STYLE CONTACT GROOVED (ALL TAP HOLES)
|
|
I = CMR (CLEAR HOLES)
|
|
J = CMR (ALT/ TAP,/CLEAR HOLES)
|
|
K = CMR (ALL TAP HOLES)
|
|
L = UG COVER (CLEAR HOLES)
|
|
M = UG COVER (ALL TAP HOLES)
|
|
N = UG COVER GROOVED (ALL CLEAR HOLES)
|
|
O = UG CHOKE (CLEAR HOLES)
|
|
P = UG CHOKE (ALL TAP HOLES)
|
|
Q = UG COVER GROOVED (ALL TAP HOLES)
|
|
R = UBR
|
|
S = PBR
|
|
T = CBR
|
|
U = UDR
|
|
V = PDR
|
|
W = CDR
|
|
X = SPECIAL FLANGES (CUSTOMER TO SPECIFY)
|
SAMPLE P/N: AMC-S75-L-B
| MODEL No. | Waveguide Size | FLANGE Type |
MATERIAL |
|---|---|---|---|
| AMC-S | 75 | L | B |
The above referenced part number describes the following Item: WR 75 waveguide to coaxial adapter type “SMA” With a cover flange in brass. All connectors are female unless specified.
Waveguide To Coaxial Diagram
| WR SIZE | FREQ: GHZ | DIM. A | DIM. B | DIM. C |
|---|---|---|---|---|
| 28 | 26.5 - 40.0 | 1.25 | 0.565 | 2.50 |
| 34 | 22.0 - 33.0 | 1.20 | 0.62 | 0.25 |
| 42 | 18.0 - 26.5 | 1.25 | 0.62 | 0.27 |
| 51 | 15.0 - 22.0 | 1.13 | 0.65 | 0.25 |
| 62 | 12.4 - 18.0 | 1.29 | 0.66 | 0.29 |
| 75 | 10.0 - 15.0 | 1.32 | 0.71 | 0.32 |
| 90 | 8.20 - 12.4 | 1.28 | 0.71 | 0.38 |
| 102 | 7.00 - 11.0 | 1.41 | 0.78 | 0.50 |
| 112 | 7.05 - 10.0 | 1.60 | 0.78 | 0.60 |
| 137 | 5.85 - 8.20 | 1.50 | 0.85 | 0.51 |
| 159 | 4.90 - 7.05 | 1.75 | 0.96 | 0.70 |
| 187 | 3.95 - 5.85 | 2.50 | 0.94 | 0.63 |
| 229 | 3.30 - 4.90 | 2.40 | 1.15 | 0.90 |
| 284 | 2.60 - 3.95 | 2.50 | 1.25 | 1.24 |
| 430 | 1.70 - 2.60 | 4.75 | 2.00 | 2.00 |
AMC CONNECTOR CODES:
|
S =TYPE SMA COAX. CONNECTOR FEMALE.
|
|
SM =TYPE SMA COAX. CONNECTOR MALE.
|
|
K = K CONNECTOR/2.92 CONNECTOR FOR HIGH FREQ.
|
|
|
Note: All AMC models include an iridite/ corrosion Protection treatment, painted flat black, flanges are unplated, Iridited and polished. For other flange finishes, material or Paint color requirements please specify.
