Waveguide Ceramic and Kapton Pressure Windows

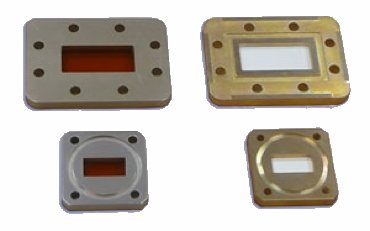

Waveguide Ceramic and Kapton Pressure Windows Description

  • 1.70 - 40.0 GHz Performance Frequency
  • Kapton & Ceramic high power dielectrics
  • (VSWR varies with design)
  • Numerous Flange Configurations available
  • Aluminum (6061) or Copper WR Waveguide Available


Advanced Microwave Components offers low and high power pressure windows. All windows are polished and include iridite corrosion protection.

All AMC windows are inspected with strict criteria that must be met or exceeded by our professionally staffed Quality Assurance Department prior to delivery.

All windows are unpainted unless otherwise specified.

WAVEGUIDE FLANGES:

A = AMC QUICK DISCONNECT (MALE) PATENT PROTECTED
B = AMC QUICK DISCONNECT (FEMALE) PATENT PROTECTED
C = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL CLEAR HOLES)
D = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL TAP HOLES)
= CPR STYLE FLAT (ALL TAP HOLES)
F = CPR STYLE FLAT (CLEAR HOLES)
G = CPR STYLE CONTACT GROOVED (CLEAR HOLES)
H = CPR STYLE CONTACT GROOVED (ALL TAP HOLES)
I = CMR (CLEAR HOLES)
J = CMR (ALT/ TAP,/CLEAR HOLES)
K = CMR (ALL TAP HOLES)
L = UG COVER (CLEAR HOLES)
M = UG COVER (ALL TAP HOLES)
N = UG COVER GROOVED (ALL CLEAR HOLES)
O = UG CHOKE (CLEAR HOLES)
P = UG CHOKE (ALL TAP HOLES)
Q = UG COVER GROOVED (ALL TAP HOLES)
R = UBR
S = PBR
T = CBR
U = UDR
V = PDR
W = CDR
X = SPECIAL FLANGES (CUSTOMER TO SPECIFY)
WR SIZEFREQ: GHZPOWER CWVSWR MAX
42 18.0 - 26.5 100 1.15
51 15.0 - 22.0 150 1.10
62 12.4 - 18.0 400 1.10
*75 10.0 - 15.0 500 1.10
90 8.20 - 12.4 750 1.10
*112 7.05 - 10.0 1000 1.10
*137 5.85 - 8.20 1000 1.10
159 4.90 - 7.05 1200 1.10
187 3.95 - 5.85 1200 1.10
229 3.30 - 4.90 1200 1.10
284 2.60 - 3.95 1200 1.10
430 1.70 - 2.60 1500 1.10

SAMPLE P/N: AMC-PW-137-F/F-B

MODEL
N0:
W/G
SIZE
FLANGE
TYPE

MATERIAL
A=Aluminum
B=Brass

AMC-PW 137 -F/F- -B-

*Note that these are available in a high power ceramic which holds 3X the power listed. To order, use the prefix AMC-HPW.

The above part number describes the following item: WR137 Pressure Window, with CPRF flanges on both sides, made of brass and a high temperature Kapton material.

Note: All AMC-PW models are made of brass or aluminum and include an iridite/corrosion protection treatment. Flanges are unplated, iridited and polished. For other plating finishes, material or paint color requirements, please specify.
