A = AMC QUICK DISCONNECT (MALE) PATENT PROTECTED |
B = AMC QUICK DISCONNECT (FEMALE) PATENT PROTECTED |
C = MODIFIED CPR STYLE – GROOVE ONLY, NO CONTACTS (ALL CLEAR HOLES) |
D = MODIFIED CPR STYLE – GROOVE ONLY, NO CONTACTS (ALL TAP HOLES) |
E = CPR STYLE FLAT (ALL TAP HOLES) |
F = CPR STYLE FLAT (CLEAR HOLES) |
G = CPR STYLE CONTACT GROOVED (CLEAR HOLES) |
H = CPR STYLE CONTACT GROOVED (ALL TAP HOLES) |
I = CMR (CLEAR HOLES) |
J = CMR (ALT/ TAP,/CLEAR HOLES) |
K = CMR (ALL TAP HOLES) |
L = UG COVER (CLEAR HOLES) |
M = UG COVER (ALL TAP HOLES) |
N = UG COVER GROOVED (ALL CLEAR HOLES) |
O = UG CHOKE (CLEAR HOLES) |
P = UG CHOKE (ALL TAP HOLES) |
Q = UG COVER GROOVED (ALL TAP HOLES) |
R = UBR |
S = PBR |
T = CBR |
U = UDR |
V = PDR |
W = CDR |
X = SPECIAL FLANGES (CUSTOMER TO SPECIFY) |
MODEL NUMBERS: |
|---|
1 = U-SHAPE / RJ-U |

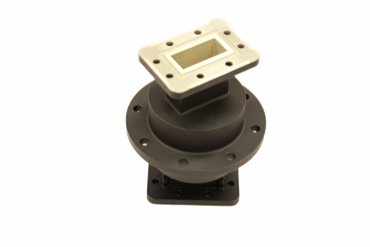

2 = INLINE / RJ-IL |

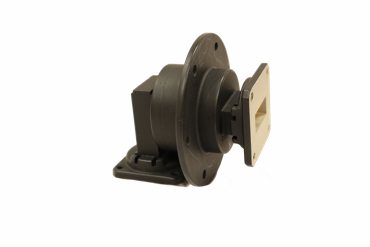

3 = L-SHAPE / RJ-L |
1.70 – 18.00 GHz Performance Frequency
1.20 Typical Max VSWR (VSWR varies with design)
Multiple single channel designs available
Numerous Flange Configurations available
Aluminum (6061) or Copper WR Waveguide Available
Contact our Sales Staff for Design options
All AMC components are produced with the highest quality available. We insure our quality through a ISO9001 / AS9100 certified quality system.

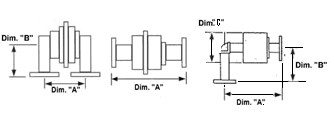

W/G SIZE | FREQUENCY GHZ | MODEL | DIM. “A” | DIM. “B” |
62** | 12.8 -15.86 | 1 | 3.60 | 1.00 |
62** | 12.8 -15.86 | 2 | 3.50 | N/A |
75 | 13.75 -14.5 | 1 | 1.57 | 2.25 |
75 | 13.75 -14.5 | 2 | 3.50 | N/A |
75 | 13.75 -14.5 | 3 | 3.60 | 1.50 |
90* | 8.20 -12.4 | 2 | 4.00 | N/A |
90* | 8.20 -12.4 | 3 | 2.31 | 1.37 |
112* | 7.90 -9.75 | 2 | 4.00 | N/A |
137 | 5.80-6.80 | 1 | 3.25 | 3.00 |
137 | 5.80-6.80 | 2 | 5.00 | N/A |
137 | 5.80-6.80 | 3 | 5.10 | 3.00 |
187 | 5.3 -5.7 | 1 | 9.75 | 4.00 |
187 | 5.3 -5.7 | 2 | 6.69 | N/A |
284 | 2.7 -3.1 | 2 | 9.90 | N/A |
430 | 2.025 -2.120 | 1 | 17.50 | 5.00 |
430 | 2.025 -2.120 | 2 | 12.00 | N/A |
430 | 2.025 -2.120 | 3 | 15.00 | 5.00 |
| * = Indicate your 25% of Bandwidth |
|
|
|
| ** = Indicates 1Ghz of bandwidth |
|
|
|
MODEL N0: |
|
|
|
|---|---|---|---|
AMC-RJ-IL | 75 | P/P | B |
The above referenced part number describes the following: WR75 “In-Line” style rotary joint , with choke flanges at both ends, made of brass.
Note: All AMC models include an iridite/corrosion protection treatment. Flanges are unplated, polished and iridited. Other finishes and paint colors are available upon request. Certain models are limited to material availabilty
